15331066 | LAPP

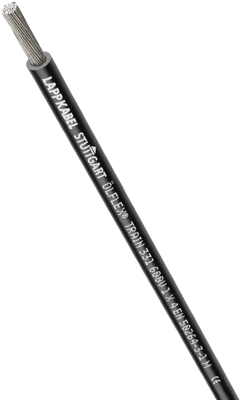

Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 331 600V, 0.75 mm², black, outer Ø 2.3 mm
Order No.: 33P2345
EAN: 4064727161433
MPN:
15331066
ÖLFLEX TRAIN 331 600V 1X0,75 BK
Series: ÖLFLEX TRAIN 331 600V
Unit Price (€ / mtr.)
0.8092 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
1 mtr.
0.8092 €
10 mtr.
0.7021 €
50 mtr.
0.6545 €
100 mtr.
0.5950 €
500 mtr.
0.5593 €
*incl. VAT plus shipping costs
**Subject to prior sale
Single-core cable, 15331066, LAPP
The 15331066 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Cold resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | polymer compound | |
| Outer diameter | 2.3 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.75 mm² | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 3.5 kV | |
| Temperature range (active) | -35°C to 90 °C | |
| Temperature range (unmoved) | -40°C to 120 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
