15331006 | LAPP
Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 331 600V, 16 mm², black, outer Ø 6.6 mm, 15331006
Order No.: 33P2386
EAN: 4044777253685
MPN:
15331006
ÖLFLEX TRAIN 331 600V 1X16 BK
Series: ÖLFLEX TRAIN 331 600V
Unit Price (€ / mtr.)
5.3193 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
531.93 € *
Price list
Quantity
Price per unit*
100 mtr.
5.3193 €
500 mtr.
4.9980 €
*incl. VAT plus shipping costs
Subject to prior sale

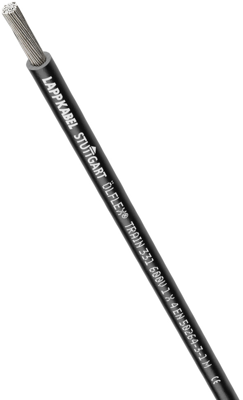

Single-core cable, 15331006, LAPP
The 15331006 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Cold resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage U0 | 600 V | |
| Colour | black | |
| Outer diameter | 6.6 mm | |
| Core insulation material | polymer compound | |
| Temperature range (unmoved) | -40°C to 120 °C | |
| Rated voltage | 1 kV | |
| Halogen free | Yes | |
| Cable material | copper, tin-plated | |
| Product type | train cable | |
| Test voltage | 3.5 kV | |
| Cable cross-section | 16 mm² | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -35°C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
