15331005 | LAPP
Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 331 600V, 10 mm², black, outer Ø 5.6 mm, 15331005
Order No.: 33P2378
EAN: 4044777253654
MPN:
15331005
ÖLFLEX TRAIN 331 600V 1X10 BK
Series: ÖLFLEX TRAIN 331 600V
Unit Price (€ / mtr.)
4.6529 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.65 € *
Price list
Quantity
Price per unit*
1 mtr.
4.6529 €
10 mtr.
4.0341 €
50 mtr.
3.7247 €
100 mtr.
3.4272 €
500 mtr.
3.2487 €
*incl. VAT plus shipping costs
Subject to prior sale

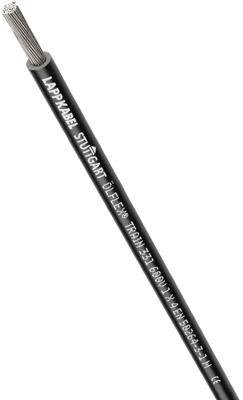

Single-core cable, 15331005, LAPP
The 15331005 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Cold resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | polymer compound | |
| Colour | black | |
| Outer diameter | 5.6 mm | |
| Test voltage | 3.5 kV | |
| Halogen free | Yes | |
| Cable cross-section | 10 mm² | |
| Cable material | copper, tin-plated | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40°C to 120 °C | |
| Temperature range (active) | -35°C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
