0023392 | LAPP

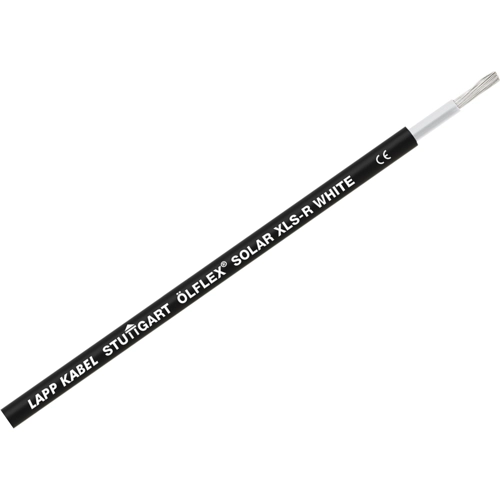

Copolymer-photovoltaic cable, halogen free, ÖLFLEX SOLAR XLS-R, 6.0 mm², black/red, outer Ø 5.8 mm
Order No.: 33P2301
EAN: 4044776634799
MPN:
0023392
ÖLFLEX SOLAR XLS-R 1X6 WH/BKRD
Series: ÖLFLEX SOLAR XLS-R
Unit Price (€ / mtr.)
2.8917 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
2.89 € *
Price list
Quantity
Price per unit*
1 mtr.
2.8917 €
10 mtr.
2.5109 €
50 mtr.
2.3205 €
100 mtr.
2.1420 €
500 mtr.
2.0111 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solar cable, 0023392, LAPP
The 0023392 is a electron beam cross-linked solar cable with reduced outer diameter. This cross-linked, halogen free and double insulated solar cable is suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power system. It is applicable for the connection of solar panel among themselves and as extension cable between the individual module strings or the DC/AC inverter.
Features
- Good notch and abrasion resistance
- Proven electron beam cross-linked quality
- UV-resistant
- Solar Energy
- Cold-resistant
Technical specifications
| Core insulation material | copolymer | |
| Outer diameter | 5.8 mm | |
| Colour | black/red | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 6.0 mm² | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 6.5 kV | |
| Temperature range (unmoved) | -40°C to 100 °C | |
| Bending radius moved | 93 mm | |
| Bending radius unmoved | 31 mm |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444999 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
