79036200 | LAPP

Bulkhead housing, size HB10, aluminum alloy, 2 x M25/M32, angled, cross bow locking, IP65, 79036200

Order No.: 30P289
EAN: 4044773532494
MPN:
79036200
H-B 10 SGRLH M25 ZW.
Series: EPIC H-B 10
LAPP

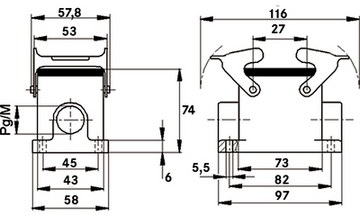

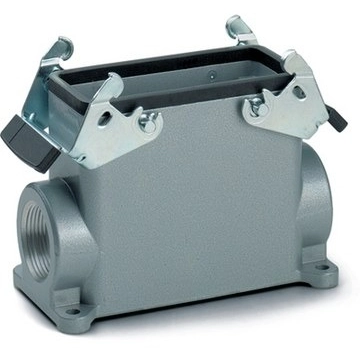

79036200 LAPP Housings for HDC Connectors Image 1
79036200 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.7246 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
33.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
33.7246 €

Bulkhead housing, 79036200, LAPP

The 79036200 housing is suitable for use in the plastics industry. It consists of high base housing, 2 double levers and 2 cable entries.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version bulkhead housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet 2 x M25/M32, angled
Degree of protection (IP) IP65
Type of locking cross bow locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
