79006600 | LAPP
Bulkhead housing, size HB6, aluminum alloy, 2 x M20/M25, angled, longitudinal bow locking, IP65, 79006600
Unit Price (€ / pc.)
25.5255 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.53 € *
Price list
Quantity
Price per unit*
10 pcs.
25.5255 €
50 pcs.
23.9785 €
100 pcs.
22.4315 €
*incl. VAT plus shipping costs
**Subject to prior sale

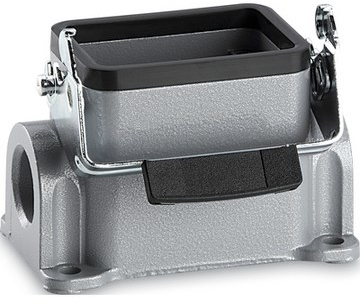

Bulkhead housing, 79006600, LAPP
The 79006600 metal housing is suitable for inserts with outstanding electrical properties. It has 2 cable entries and can be used in the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Control engineering
- Plastics industry
Technical specifications
| Version | bulkhead housing | |
| Shell size | HB6 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | 2 x M20/M25, angled | |
| Degree of protection (IP) | IP65 | |
| Type of locking | longitudinal bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
