19123000 | LAPP
Grommet housing, size HB24, aluminum alloy, M25/M32, angled, cross bow locking, IP65, 19123000
Unit Price (€ / pc.)
21.8722 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.87 € *
Price list
Quantity
Price per unit*
1 pcs.
21.8722 €
5 pcs.
19.6945 €
10 pcs.
18.0523 €
50 pcs.
16.9575 €
100 pcs.
15.8627 €
*incl. VAT plus shipping costs
**Subject to prior sale

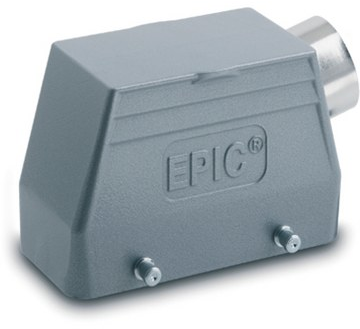

Sleeve housing, 19123000, LAPP
The 19123000 connector housing can withstand temperatures of up to +125 degrees for a short period and is suitable for use in the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Version | grommet housing | |
| Shell size | HB24 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | M25/M32, angled | |
| Degree of protection (IP) | IP65 | |
| Type of locking | cross bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
