61804961 | LAPP
Plastic tube fitting, M6, 48 mm, polyamide, IP66/IP67/IP68/IP69, gray, (L) 156.5 mm
Order No.: 33P4110
EAN: 4044778398262
MPN:
61804961
FIPLOCK ONE-T 48-48-48 GY
Series: FIPLOCK ONE-ST PG
Unit Price (€ / pc.)
58.1553 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

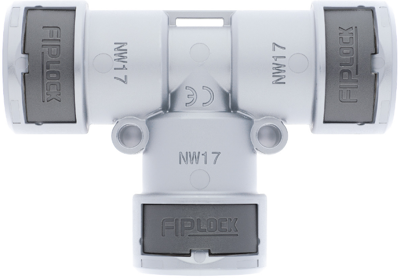

Hose fitting, 61804961, LAPP
The 61804961 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. Very high tensile strength due to all around tooth system ensures mounting safety due to integrated coding system. Excellent IP rating cost-saving due to quick and easy installation.
Features
- All around locking mechanism due to 360° tooth system
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Optimum strain relief
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
Technical specifications
| Colour | gray | |
| Thread size | M6 | |
| Length | 156.5 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 48 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
