61804865 | LAPP

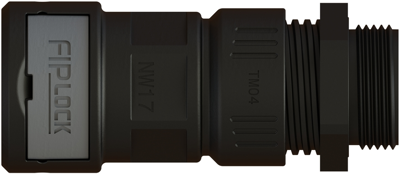

Plastic tube fitting, NPT 3/4'', polyamide, IP66/IP67/IP68/IP69, black, (L) 87.3 mm
Order No.: 33P4069
EAN: 4044778397395
MPN:
61804865
FIPLOCK ONE-ST NPT 3/4'' - 23 BK
Series: FIPLOCK ONE ST-NPT
Unit Price (€ / pc.)
17.8619 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Hose fitting, 61804865, LAPP
The 61804865 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. Very high tensile strength due to all around tooth system ensures mounting safety due to integrated coding system. Excellent IP rating cost-saving due to quick and easy installation.
Features
- All around locking mechanism due to 360° tooth system
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Cable strain relief
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
Technical specifications
| Colour | black | |
| Thread size | NPT 3/4'' | |
| Length | 87.3 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
