61804687 | LAPP

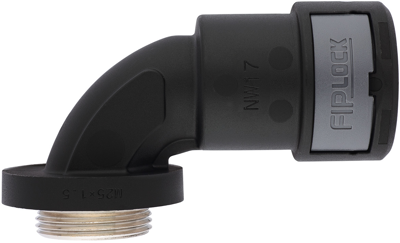

90° hose fitting, M12, 10 mm, polyamide, IP66/IP67/IP68/IP69, black, (L) 37.7 mm
Order No.: 33P5582
EAN: 4044778396169
MPN:
61804687
FIPLOCK ONE 90° METALL M12X1,5 / 10 BK
Series: FIPLOCK ONE 90° Metal M
Unit Price (€ / pc.)
16.8861 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Hose fitting, 61804687, LAPP
The 61804687 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. This product has very high tensile strength due to all around tooth system and ensures mounting safety due to integrated coding system.
Features
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Low weight
- UV-resistan
- Waterproof
Applications
- Demand of increased liquid tightness
- For indoor and outdoor use
Technical specifications
| Colour | black | |
| Thread size | M12 | |
| Length | 37.7 mm | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 10 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
