61804617 | LAPP
Straight hose fitting, PG9, 10 mm, polyamide, IP66/IP67/IP68/IP69, gray
Order No.: 33P5573
EAN: 4044778395674
MPN:
61804617
FIPLOCK ONE METALL PG 9 / 10 GY
Series: FIPLOCK ONE Metal PG
Unit Price (€ / pc.)
14.1134 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

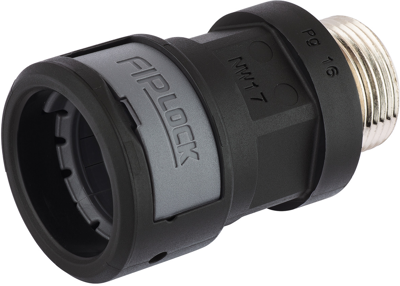

Hose fitting, 61804617, LAPP
The 61804617 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. This product has very high tensile strength due to all around tooth system and ensures mounting safety due to integrated coding system.
Features
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Low weight
- UV-resistan
- Waterproof
Applications
- Demand of increased liquid tightness
- For indoor and outdoor use
Technical specifications
| Colour | gray | |
| Thread size | PG9 | |
| Material | polyamide | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 10 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
