61804548 | LAPP

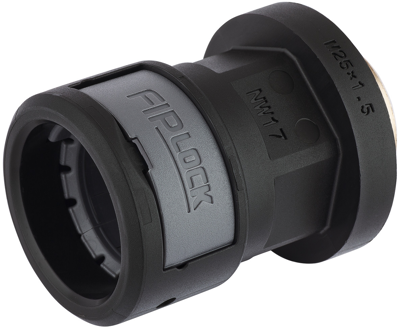

Straight hose fitting, M20, 12 mm, polyamide, IP66/IP67/IP68/IP69, gray
Hose fitting, 61804548, LAPP
The 61804548 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. This product has very high tensile strength due to all around tooth system and ensures mounting safety due to integrated coding system.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Low weight
Applications
- Demand of increased liquid tightnes
- For indoor and outdoor use
Colour | gray | |
Thread size | M20 | |
Material | polyamide | |
max. operating temperature | 120 °C | |
min. operating temperature | -45 °C | |
Nominal width | 12 mm | |
Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Country of origin | QU |
Customs tariff number | 39174000 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
