52220006 | LAPP
Insert grommet, cable Ø 12 to 16 mm, PA, black, 52220006
Unit Price (€ / pc.)
8.7346 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
8.73 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7346 €
5 pcs.
7.5922 €
10 pcs.
6.8425 €
50 pcs.
6.4498 €
100 pcs.
6.0809 €
*incl. VAT plus shipping costs
Subject to prior sale

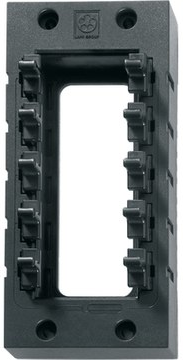

Cable bushing systems series SKINTOP CUBE, type Lapp Kabel 5222.
Variable clamping range, safe strain relief, sustained vibration-proof, resistant against oils, grease, ozone and UV radiation. The frame can be mounted from the inside or outside; Frame material: glass fiber-reinforced polyamide. Frame flat seal: CR. Snap-in sealing module: special polypropylene. Seal of the snap-in sealing module: LSE 2. Degree of protection: IP 64. Operating temperatures: –20 to 80 °C.

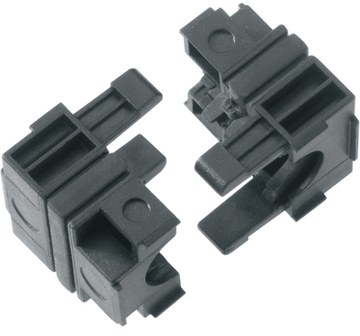

Sealing modules for series SKINTOP CUBE.
2-piece.
Technical attributes (type, size, clamping range): 52220006, 40 x 40 mm, 12 to 16 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 16 mm | |
| Colour | black | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 80 °C | |
| Material | PA | |
| min. cable diameter | 12 mm | |
| Length | 40 mm | |
| Product type | insert grommet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
