52220000 | LAPP
Cable feedthrough system Lapp SKINTOP CUBE FRAME 16
Unit Price (€ / pc.)
34.6766 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
34.68 € *
Price list
Quantity
Price per unit*
1 pcs.
34.6766 €
5 pcs.
32.7250 €
10 pcs.
30.8210 €
25 pcs.
28.9051 €
50 pcs.
26.9535 €
*incl. VAT plus shipping costs
**Subject to prior sale

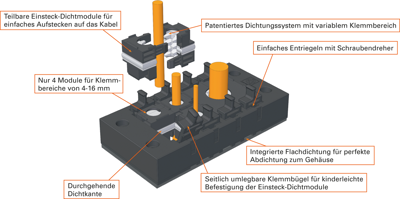

Cable bushing systems series SKINTOP CUBE, type Lapp Kabel 5222.
Variable clamping range, safe strain relief, sustained vibration-proof, resistant against oils, grease, ozone and UV radiation. The frame can be mounted from the inside or outside; Frame material: glass fiber-reinforced polyamide. Frame flat seal: CR. Snap-in sealing module: special polypropylene. Seal of the snap-in sealing module: LSE 2. Degree of protection: IP 64. Operating temperatures: –20 to 80 °C.
Frames for SKINTOP CUBE series.
Technical attributes (type, connector mounting cut-out (number of poles/dimensions), max. number of bushings): 52220000, 16-pole/36 x 86 mm, 8
Technical specifications
| Version | cable gland system | |
| Colour | black | |
| Material | polyamide | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
