52220001 | LAPP
Cable gland system, PA, black, 52220001
Unit Price (€ / pc.)
30.0832 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
30.08 € *
Price list
Quantity
Price per unit*
1 pcs.
30.0832 €
10 pcs.
28.2149 €
*incl. VAT plus shipping costs
Subject to prior sale

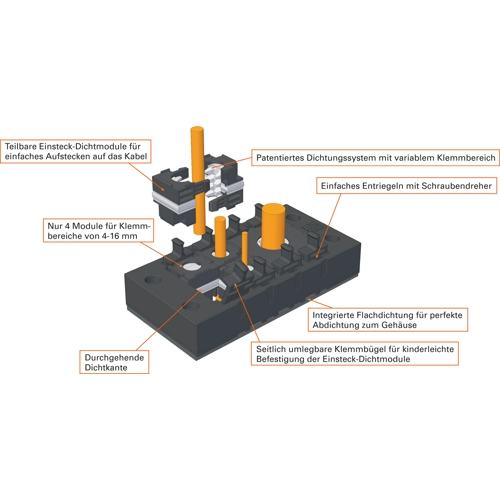

Cable bushing systems series SKINTOP CUBE, type Lapp Kabel 5222.
Variable clamping range, safe strain relief, sustained vibration-proof, resistant against oils, grease, ozone and UV radiation. The frame can be mounted from the inside or outside; Frame material: glass fiber-reinforced polyamide. Frame flat seal: CR. Snap-in sealing module: special polypropylene. Seal of the snap-in sealing module: LSE 2. Degree of protection: IP 64. Operating temperatures: –20 to 80 °C.
Frames for SKINTOP CUBE series.
Technical attributes (type, connector mounting cut-out (number of poles/dimensions), max. number of bushings): 52220001, 24-pole/36 x 112 mm, 10
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Wall thickness | 23 mm | |
| Material | PA | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| Product type | cable gland system | |
| Length | 67 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
