27600904 | LAPP
LWL-Kabel, singlemode 9/125 µm, Fibers: 4, OS2, PE, black, halogen free, 27600904
Order No.: 33P2995
EAN: 4056155125859
MPN:
27600904
HITRONIC HQN1500 4E 9/125 OS2
Series: HITRONIC HQN
Unit Price (€ / mtr.)
1.0115 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Outdoor cable, 27600904, LAPP

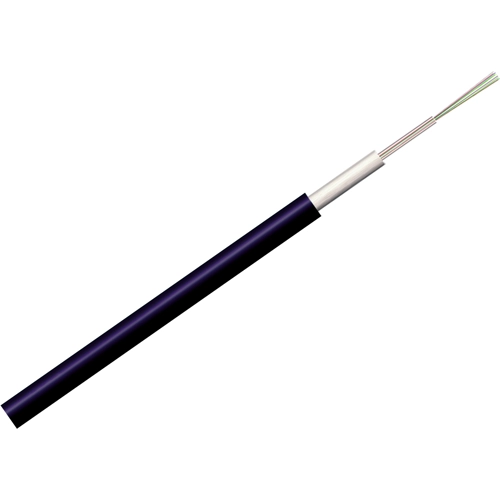

The 27600904 is a outdoor glass fibre optic cable with central loose tube, non-metallic strength elements, longitudinally and laterally watertight, rodent protection, robust and halogen-free cable sheath.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Low weight
- Optimum strain relief
- UV-resistant
- Waterproof
Applications
- For outdoor use
- Direct burial
- WAN applications
- Industrial environment
Technical specifications
| Number of fibres | 4 | |
| Outer diameter | 7.3 mm | |
| Colour | black | |
| Chamfer type | singlemode 9/125 µm | |
| Halogen free | Yes | |
| Category | OS2 | |
| Material | PE | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
