27600112 | LAPP

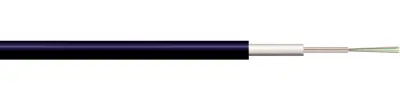

Fibre optic cable, multimode 62.5/125 µm, fibers: 12, OM1, PE, black, 27600112
Order No.: 33P2990
EAN: 4056155125682
MPN:
27600112
HITRONIC HQN1500 12G 62,5/125 OM1
Series: HITRONIC HQN
Unit Price (€ / mtr.)
2.9393 € *
Standard delivery time from the manufacturer is: On Request
Outdoor cable, 27600112, LAPP
The 27600112 is a outdoor glass fibre optic cable with central loose tube, non-metallic strength elements, longitudinally and laterally watertight, rodent protection, robust and halogen-free cable sheath.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Low weight
- Optimum strain relief
- UV-resistant
- Waterproof
Applications
- For outdoor use
- Direct burial
- WAN applications
- Industrial environment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Chamfer type | multimode 62.5/125 µm | |
| Number of fibres | 12 | |
| Colour | black | |
| Material | PE | |
| Halogen free | Yes | |
| Outer diameter | 7.3 mm | |
| Category | OM1 | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85447000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
