2170960 | LAPP
PVC ethernet cable, Cat 6A, ethernet/IP, 8-wire, AWG 23, gray, 2170960
Order No.: 33P5644
EAN: 4044777771608
MPN:
2170960
ETHERLINE LAN Cat.6A S/FTP 4x2xAWG23
Series: ETHERLINE LAN 500 Cat.6A
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
1.8088 € *
Available in 7 Days: 1,100 mtr. - if ordered today

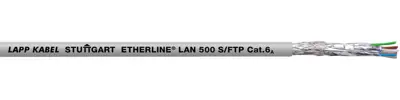

Ethernet cable, 2170960, LAPP
The 2170960 is an installation cable for structured horizontal cabling. This cable is ideal for LAN data transmission in all Ethernet applications up to 10GBase-T and higher. The copper braid overall screen offers protection against electromagnetic interference as well as mechanical reinforcement.
Features
- Flame-retardant
- Halogen-free
- Interference signals
Applications
- For office wiring, administration and development buildings in the tertiary sector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ethernet cable | |
| Number of cores | 8 | |
| AWG cross-section | AWG 23 | |
| Outer diameter | 7.3 mm | |
| Bussystem | ethernet/IP | |
| Category | Cat 6A | |
| Colour | gray | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | No | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Temperature range (active) | -0 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
