2170345/100 | LAPP

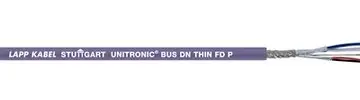

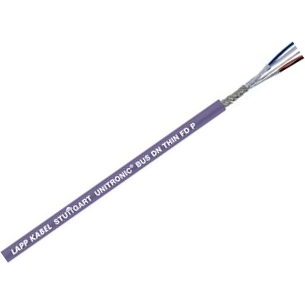

PUR system bus cable, DeviceNet, 4-wire, AWG 24, purple, 2170345/100
Order No.: 32P6218
EAN: 4044774751832
MPN:
2170345/100
UNITRONIC BUS DN THIN FD P
Series: UNITRONIC BUS DN
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
7.2709 € *
Available in 7 Days: 2,900 mtr. - if ordered today
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | system bus cable | |
| Number of cores | 4 | |
| AWG cross-section | AWG 24 | |
| Outer diameter | 6 mm | |
| Bussystem | DeviceNet | |
| Colour | purple | |
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -10 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
