2170214/100 | LAPP
Data cable, modbus, 4-wire, 0.25 mm², AWG 24, 2170214/100
NCNR (non cancelable / non returnable)

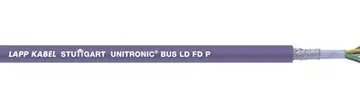

4-conductor data cable, 0.25 mm², LAPP 2170214
UNITRONIC BUS LD FD P is a highly flexible data cable for BUS systems with a nominal impedance of 100–120 Ω and data rates up to 10 Mbit/s. Pair twisting and a copper wire braid shield provide effective protection against external electromagnetic interference. The cable is designed for highly flexible applications, such as in energy chains, linear robots, and on continuously moving machinery, with high durability requirements in dry and humid environments as well as in harsh industrial settings. It can be used outdoors within the specified temperature range, although color changes in the outer jacket may occur. The PUR outer jacket is largely resistant to mineral oils and abrasion.
Translated with DeepL.com (free version)
| Filter | Property | Value |
|---|---|---|
| Product type | data cable | |
| Number of cores | 4 | |
| Cable cross-section | 0.25 mm² | |
| AWG cross-section | AWG 24 | |
| Bussystem | modbus | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -30 °C to 70 °C |
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444993 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
