11139626 | LAPP

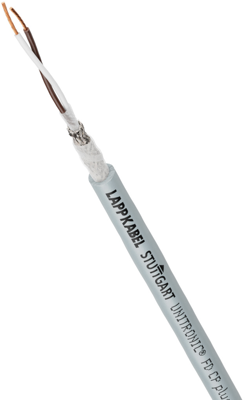

PUR data cable, 2-wire, 0.14 mm², AWG 26, gray, 11139626
Order No.: 33P2797
EAN: 4064727481180
MPN:
11139626
UNITRONIC FD CP plus A 2X0,14
Series: UNITRONIC FD CP plus A
Unit Price (€ / mtr.)
3.2963 € *
Standard delivery time from the manufacturer is: On Request
Data cable, 11139626, LAPP
The 11139626 is a high flexible and screened data cable with an outer sheath of PUR. This product with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machinesparts. It is suitable for torsion application in wind turbines (WTG). The torsional load is limited to applications, as they typically occur in the loop of a wind turbine.
Features
- Mechanical and plant engineering
- Wind Energy
- Suitable for outdoor use
- Good chemical resistance
- Cold-resistant
- Oil-resistant
- Interference signals
- Torsion load
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | Yes | |
| Material | PUR | |
| AWG cross-section | AWG 26 | |
| Cable material | copper, bright | |
| Temperature range (active) | -40 °C to 80 °C | |
| Number of cores | 2 | |
| Core insulation material | polyolefine | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | gray | |
| Outer diameter | 4.3 mm | |
| Version | data cable | |
| Cable cross-section | 0.14 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
