11139624 | LAPP
PUR data cable, 18-wire, 0.34 mm², AWG 22, gray, 11139624
Order No.: 33P2793
EAN: 4064727481128
MPN:
11139624
UNITRONIC FD CP plus A 18X0,34
Series: UNITRONIC FD CP plus A
Unit Price (€ / mtr.)
11.2931 € *
Standard delivery time from the manufacturer is: 6 Weeks

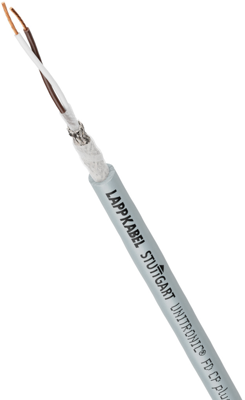

Data cable, 11139624, LAPP
The 11139624 is a high flexible and screened data cable with an outer sheath of PUR. This product with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machinesparts. It is suitable for torsion application in wind turbines (WTG). The torsional load is limited to applications, as they typically occur in the loop of a wind turbine.
Features
- Mechanical and plant engineering
- Wind Energy
- Suitable for outdoor use
- Good chemical resistance
- Cold-resistant
- Oil-resistant
- Interference signals
- Torsion load
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | gray | |
| Cable cross-section | 0.34 mm² | |
| Outer diameter | 9.8 mm | |
| Version | data cable | |
| Material | PUR | |
| Temperature range (active) | -40 °C to 80 °C | |
| AWG cross-section | AWG 22 | |
| Number of cores | 18 | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Core insulation material | polyolefine | |
| Drag chain suitable | Yes | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
