11139607 | LAPP
PUR data cable, 25-wire, 0.14 mm², AWG 26, gray, 11139607
Order No.: 33P2794
EAN: 4064727480541
MPN:
11139607
UNITRONIC FD CP plus A 25X0,14
Series: UNITRONIC FD CP plus A
Unit Price (€ / mtr.)
14.3038 € *
Standard delivery time from the manufacturer is: On Request

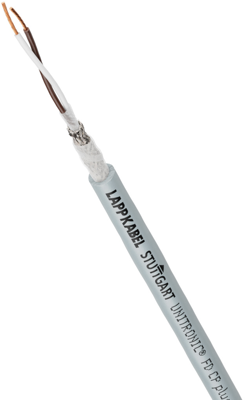

Data cable, 11139607, LAPP
The 11139607 is a high flexible and screened data cable with an outer sheath of PUR. This product with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machinesparts. It is suitable for torsion application in wind turbines (WTG). The torsional load is limited to applications, as they typically occur in the loop of a wind turbine.
Features
- Mechanical and plant engineering
- Wind Energy
- Suitable for outdoor use
- Good chemical resistance
- Cold-resistant
- Oil-resistant
- Interference signals
- Torsion load
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 8.9 mm | |
| Version | data cable | |
| Core insulation material | polyolefine | |
| Halogen free | Yes | |
| Cable cross-section | 0.14 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Colour | gray | |
| Material | PUR | |
| Number of cores | 25 | |
| AWG cross-section | AWG 26 | |
| Temperature range (active) | -40 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
