1030629 | LAPP
PVC data cable, 12-wire, 0.75 mm², AWG 19, black, 1030629
Order No.: 33P7127
EAN: 4064727123394
MPN:
1030629
UNITRONIC LiYCY (TP) 6x2x0,75 BK
Series: UNITRONIC LiYCY (TP) BK
Unit Price (€ / mtr.)
5.8905 € *
Standard delivery time from the manufacturer is: 6 Weeks

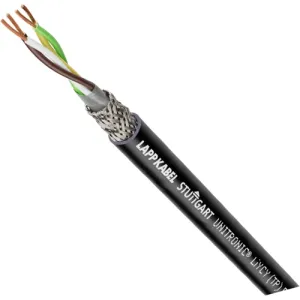

Data cable, 1030629, LAPP
The 1030629 is a screened, twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The screen provides protection against electromagnetic interferences. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Outer diameter | 12.1 mm | |
| AWG cross-section | AWG 19 | |
| Number of cores | 12 | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, bright | |
| Version | data cable | |
| Shielding | shielded | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
