1030611 | LAPP
PVC data cable, 6-wire, 0.25 mm², AWG 24, black, 1030611
Order No.: 33P7113
EAN: 4064727122410
MPN:
1030611
UNITRONIC LiYCY (TP) 3x2x0,25 BK
Series: UNITRONIC LiYCY (TP) BK
Unit Price (€ / mtr.)
2.8441 € *
Available: 100 mtr.
Leadtime: 6 Weeks **
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 mtr.
2.8441 €
10 mtr.
2.3919 €
50 mtr.
2.1063 €
100 mtr.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale

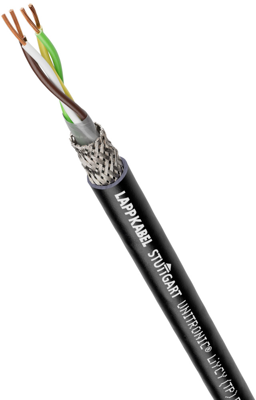

Data cable, 1030611, LAPP
The 1030611 is a screened, twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The screen provides protection against electromagnetic interferences. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 6 | |
| Version | data cable | |
| Outer diameter | 7.1 mm | |
| AWG cross-section | AWG 24 | |
| Colour | black | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Cable cross-section | 0.25 mm² | |
| Material | PVC | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
