1030608 | LAPP
PVC data cable, 4-wire, 0.14 mm², AWG 26, black, 1030608
Order No.: 33P7104
EAN: 4064727122267
MPN:
1030608
UNITRONIC LiYCY (TP) 20x2x0,14 BK
Series: UNITRONIC LiYCY (TP) BK
Unit Price (€ / mtr.)
6.2356 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data cable, 1030608, LAPP

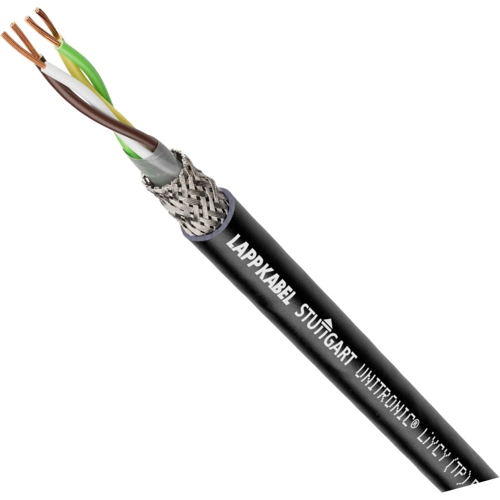

The 1030608 is a screened, twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The screen provides protection against electromagnetic interferences. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Number of cores | 4 | |
| Version | data cable | |
| AWG cross-section | AWG 26 | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No | |
| Cable cross-section | 0.14 mm² | |
| Material | PVC | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Cable material | copper, bright | |
| Colour | black | |
| Outer diameter | 11.3 mm | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
