8718040 | LAPP

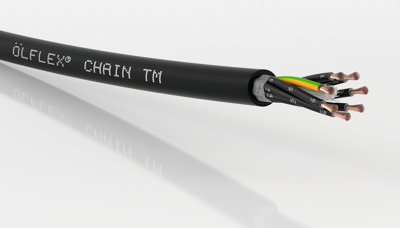

PVC control line ÖLFLEX CHAIN TM 4 G 1.0 mm², AWG 18, unshielded, black
Unit Price (€ / mtr.)
5.2241 € *
Available: 0 mtr.
Leadtime: On Request **
Control line, 8718040, LAPP
Features
- High oil-resistance
- Flame retardant
- Sunlight Resistant; Direct Burial
- Water-resistant, UL 75°C WET rating
Applications
- In power chains or moving machine parts
- Static open wiring on and between cable tray an industrial machine
- Industrial machinery and machine tools
- Wind turbine engineering
- Linear robots, automated handling equipment
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | black/green-yellow | |
| Number of cores | 4 | |
| Version | control line | |
| Outer diameter | 8.6 mm | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Rated voltage UL/CSA | 1 kV | |
| Standard number | UL, CSA | |
| Test voltage | 2 kV | |
| Shielding | unshielded | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C to 90 °C | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
