30020811 | LAPP

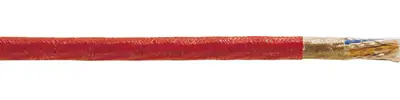

Glass silk connection cable ÖLFLEX HEAT 1565 MC 2 x 4.0 mm², unshielded, red, 30020811
Order No.: 33P2740
EAN: 4044774681320
MPN:
30020811
ÖLFLEX HEAT 1565 MC 2X4
Series: ÖLFLEX HEAT 1565 MC
Unit Price (€ / mtr.)
210.2611 € *
Standard delivery time from the manufacturer is: On Request
Glass fibre insulated power cable, 30020811, LAPP
The 30020811 is a glass fibre insulated power cable for use in blast furnaces, glassworks, motor construction. This product ensures the power supply of electric circuits at extremely dangerous locations, e.g. blast furnaces, coke mills, oil refineries, glassworks, aluminium- and steel works etc. The outstanding heat-proved quality and flame resistance guarantee the function even at contact with melted metal or glass for shortterm.
Features
- Halogen-free
- Heat-resistant
- Cold-resistant
- Temperature-resistant
- Only suitable for use in dry conditions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | glass silk | |
| Test voltage | 2 kV | |
| Colour | red | |
| Halogen free | Yes | |
| Number of cores | 2 | |
| Shielding | unshielded | |
| Outer diameter | 11.2 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -195 °C to 400 °C | |
| Material | glass silk | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | No | |
| Rated voltage | 500 V | |
| Drag chain suitable | No | |
| Core colour sequence | blue/brown | |
| Product type | connection cable | |
| Cable material | copper, nickel-plated | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
