221641/152 | LAPP

Polymer control line ÖLFLEX TRAY II 41 G 1.5 mm², AWG 16, unshielded, black, 221641/152

Order No.: 33P3364
EAN: 4044774614205
MPN:
221641/152
ÖLFLEX TRAY II 41G1,5
Series: ÖLFLEX TRAY II
221641/152 LAPP Control Cables
Image may differ
Unit Price (€ / mtr.)
77.6594 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
11,804.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
152 mtr.
77.6594 €

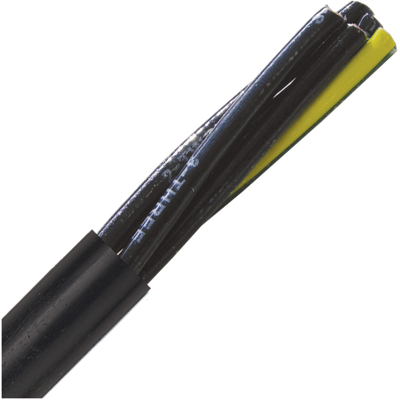

Control cable, 221641/152, LAPP

The 221641/152 is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellent flexibility making it easier to pull through Tray. No conduit required which provides savings on material costs and labor.

Features

  • Suitable for outdoor use
  • Flame-retardant
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Torsion-resistant
  • UV-resistant

Applications

  • Plant and Factory expansions
  • Automotive plants
  • Tray installations
Technical specifications
Filter Property Value
Core insulation material PVC
Colour black
Number of cores 41
Protective conductor available Yes
Outer diameter 25 mm
Drag chain suitable No
AWG cross-section AWG 16
Test voltage 2 kV
Rated voltage UL/CSA 1000 V
Halogen free No
Cable cross-section 1.5 mm²
Version control line
Material polymer
Cable material copper, bright
Shielding unshielded
Rated voltage U0 600 V
Temperature range (unmoved) -40 °C to 105 °C
Temperature range (active) -25 °C to 105 °C
Conductor category CL.5 = fine stranded
Standard number cUL, CSA
Rated voltage 1000 V
Logistics
Property Value
Country of origin US
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
