221425/152 | LAPP

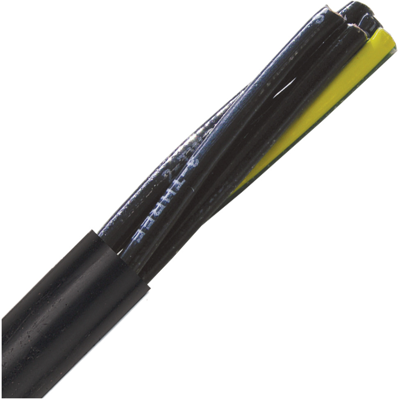

Polymer control line ÖLFLEX TRAY II 25 G 2.5 mm², AWG 14, unshielded, black, 221425/152
Unit Price (€ / mtr.)
63.1176 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 221425/152, LAPP
The 221425/152 is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellent flexibility making it easier to pull through Tray. No conduit required which provides savings on material costs and labor.
Features
- Suitable for outdoor use
- Flame-retardant
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Torsion-resistant
- UV-resistant
Applications
- Plant and Factory expansions
- Automotive plants
- Tray installations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Colour | black | |
| Number of cores | 25 | |
| Protective conductor available | Yes | |
| Outer diameter | 22.5 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 14 | |
| Test voltage | 2 kV | |
| Rated voltage UL/CSA | 1000 V | |
| Halogen free | No | |
| Cable cross-section | 2.5 mm² | |
| Version | control line | |
| Material | polymer | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Temperature range (active) | -25 °C to 105 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | cUL, CSA | |
| Rated voltage | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
