1314001 | LAPP

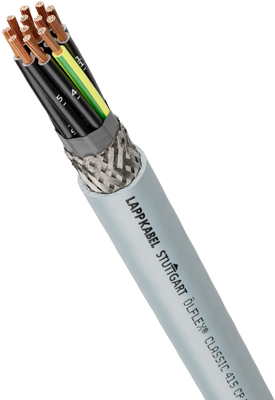

PUR control line ÖLFLEX CLASSIC 415 CP 3 G 0.5 mm², shielded, gray
Order No.: 33P1640
EAN: 4044774608099
MPN:
1314001
ÖLFLEX CLASSIC 415 CP 3G0,5
Series: ÖLFLEX CLASSIC 415 CP
Unit Price (€ / mtr.)
3.4867 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 1314001, LAPP
Features
- High oil-resistance
- Abrasion and notch-resistant
- Low-adhesive surface
- Resistant to hydrolysis and microbes
Applications
- Industrial machinery and machine tools
- Measurement, control and electrical applications
- Under consideration of the temperature range also suitable for outdoor use
- Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-1 | |
| Number of cores | 3 | |
| Version | control line | |
| Outer diameter | 6.1 mm | |
| Colour | gray | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
