1125021 | LAPP

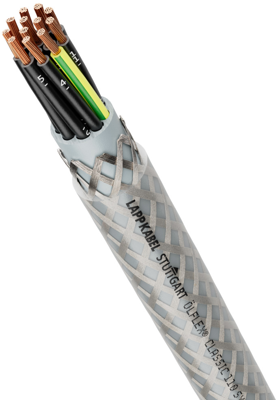

PVC control line ÖLFLEX CLASSIC 110 SY 21 G 0.5 mm², unshielded, transparent
Order No.: 33P1324
EAN: 4044776972020
MPN:
1125021
ÖLFLEX CLASSIC 110 SY 21G0,5
Series: ÖLFLEX CLASSIC 110 SY
Unit Price (€ / mtr.)
7.1876 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 1125021, LAPP
Features
- Flame-retardant
- Good chemical resistance
Applications
- Plant engineering, Industrial machinery
- Heating and air-conditioning systems
- Areas with high mechanical stress
- For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | VDE 0293-1 | |
| Number of cores | 21 | |
| Version | control line | |
| Outer diameter | 14.9 mm | |
| Colour | transparent | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | VDE | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
