1020132 | LAPP

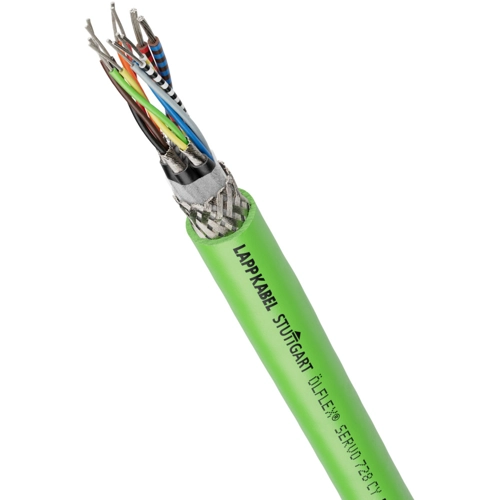

PVC encoder cable ÖLFLEX SERVO 728 CY 12 x 4 x 2x0.14 mm² + 4x1 mm², AWG 18, shielded, green, 1020132
Order No.: 33P1975
EAN: 4044777779185
MPN:
1020132
ÖLFLEX SERVO 728 CY 4x(2x0,14)+(2x1,0)
Series: ÖLFLEX SERVO 728 CY
Unit Price (€ / mtr.)
8.687 € *
Standard delivery time from the manufacturer is: On Request
Encoder cable, 1020132, LAPP
Signal cable for occasional flexible use and fixed installation subject to normal mechanical load conditions. It is also suitable for use in dry, damp or wet areas. If using outdoors, observe the indicated temperature range and use with UV protection.
Features
- Low attenuation ensures a longer transmission distance
- Oil-resistant
- Interference signals
Applications
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 300 V | |
| Material | PVC | |
| Protective conductor available | No | |
| AWG cross-section | AWG 18 | |
| Rated voltage | 30 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV | |
| Product type | encoder cable | |
| Temperature range (active) | -5 °C to 70 °C | |
| Number of cores | 12 | |
| Core insulation material | polypropylene | |
| Shielding | shielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | green | |
| Outer diameter | 10.4 mm | |
| Cable cross-section | 4 x 2x0.14 mm² + 4x1 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
