1020131 | LAPP

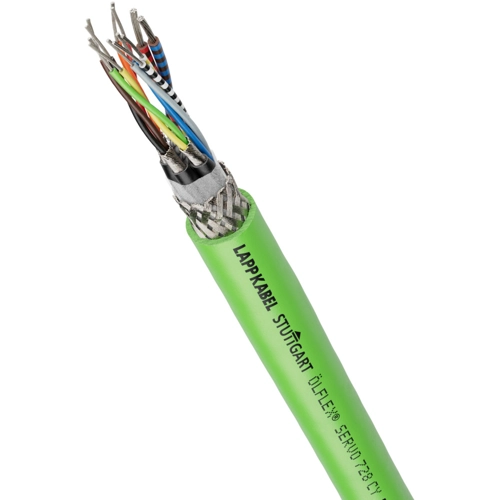

PVC encoder cable ÖLFLEX SERVO 728 CY 8 x 3 x 2x0.14 mm² + 2x0.14 mm², AWG 26, shielded, green, 1020131
Order No.: 33P1973
EAN: 4044777779154
MPN:
1020131
ÖLFLEX SERVO 728 CY 3x(2x0,14)+(3x0,14)
Series: ÖLFLEX SERVO 728 CY
Unit Price (€ / mtr.)
6.1523 € *
Standard delivery time from the manufacturer is: 6 Weeks
Encoder cable, 1020131, LAPP
Signal cable for occasional flexible use and fixed installation subject to normal mechanical load conditions. It is also suitable for use in dry, damp or wet areas. If using outdoors, observe the indicated temperature range and use with UV protection.
Features
- Low attenuation ensures a longer transmission distance
- Oil-resistant
- Interference signals
Applications
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 300 V | |
| Colour | green | |
| Outer diameter | 9.2 mm | |
| Protective conductor available | No | |
| AWG cross-section | AWG 26 | |
| Number of cores | 8 | |
| Core insulation material | polypropylene | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Rated voltage | 30 V | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Product type | encoder cable | |
| Test voltage | 2 kV | |
| Cable cross-section | 3 x 2x0.14 mm² + 2x0.14 mm² | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
