1020121 | LAPP

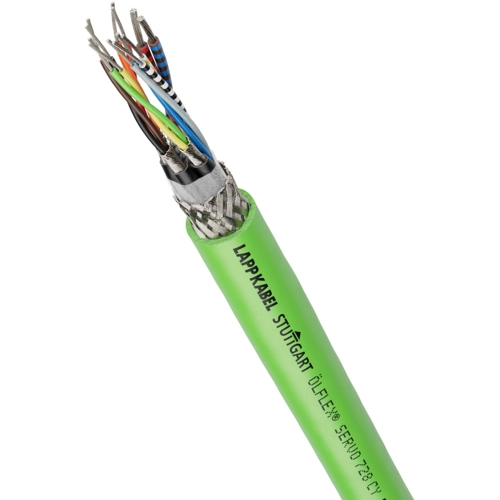

PVC encoder cable ÖLFLEX SERVO 728 CY 10 x 4 x 2x0.25 mm² + 2x1 mm², AWG 18, shielded, green, 1020121
Order No.: 33P1966
EAN: 4044777779062
MPN:
1020121
ÖLFLEX SERVO 728 CY (4x2x0,25+2x1,0)
Series: ÖLFLEX SERVO 728 CY
Unit Price (€ / mtr.)
5.9857 € *
Standard delivery time from the manufacturer is: On Request
Encoder cable, 1020121, LAPP
Signal cable for occasional flexible use and fixed installation subject to normal mechanical load conditions. It is also suitable for use in dry, damp or wet areas. If using outdoors, observe the indicated temperature range and use with UV protection.
Features
- Low attenuation ensures a longer transmission distance
- Oil-resistant
- Interference signals
Applications
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Protective conductor available | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Rated voltage | 30 V | |
| AWG cross-section | AWG 18 | |
| Temperature range (active) | -5 °C to 70 °C | |
| Material | PVC | |
| Core insulation material | polypropylene | |
| Shielding | shielded | |
| Product type | encoder cable | |
| Outer diameter | 7.6 mm | |
| Rated voltage UL/CSA | 300 V | |
| Cable cross-section | 4 x 2x0.25 mm² + 2x1 mm² | |
| Test voltage | 2 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Number of cores | 10 | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
