00420153 | LAPP

PVC ribbon cable ÖLFLEX LIFT F 4 G 16 mm², unshielded, black, 00420153

Order No.: 33P5007
EAN: 4044774664880
MPN:
00420153
ÖLFLEX LIFT F 4G16 450/750V
Series: ÖLFLEX LIFT F
00420153 LAPP Control Cables

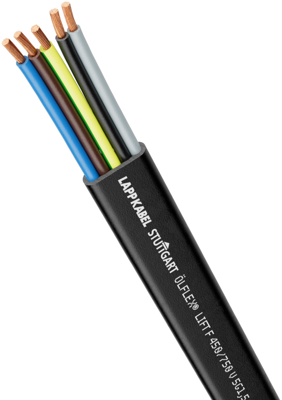

Image may differ
Unit Price (€ / mtr.)
18.802 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9,401.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 mtr.
18.802 €

Flat cable, 00420153, LAPP

The 00420153 is a cold flexible PVC flat cable for flexible use under medium mechanical load conditions, suitable for outdoor use if the indicated temperature range is observed. This product is largely resistant to acids and certain oils at room temperature. It is suitable for linear movements, such as occur in elevators and power chains. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation. Compulsory guidance is not permitted.

Features

  • Flame-retardant
  • Flat cables need less space than round cables

Applications

  • Indoor cranes and high-rack facilities
  • As supply line for moving machine parts
  • For hoisting equipment and conveyor systems
  • Food production and packaging machinery
  • Machine tools
  • Technical specifications
    Cable material copper, bright
    Colour black
    Shielding unshielded
    Halogen free No
    Cable cross-section 16 mm²
    Drag chain suitable No
    Version flat cable
    Rated voltage 750 V
    Rated voltage U0 450 V
    Standard number VDE
    Core insulation material PVC
    Temperature range (active) -15 °C to 70 °C
    Material PVC
    Number of cores 4
    Protective conductor available Yes
    Conductor category CL.6 = finest stranded
    Outer diameter 35 mm
    Test voltage 3 kV
    Logistics
    Country of origin CN
    Customs tariff number 85444995
    Compliance
    Date of RoHS guidelines 3/31/15
    SVHC free Yes
    RoHS conform Yes
