0042004 | LAPP

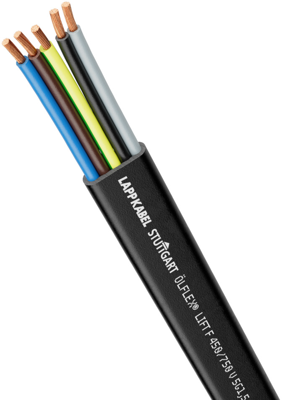

PVC Flat cable ÖLFLEX LIFT F 8 G 1.5 mm², unshielded, black
Order No.: 33P5017
EAN: 4044774664538
MPN:
0042004
ÖLFLEX LIFT F 8G1,5 450/750V
Series: ÖLFLEX LIFT F
Unit Price (€ / mtr.)
4.8552 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Flat cable, 0042004, LAPP
The 0042004 is a cold flexible PVC flat cable for flexible use under medium mechanical load conditions, suitable for outdoor use if the indicated temperature range is observed. This product is largely resistant to acids and certain oils at room temperature. It is suitable for linear movements, such as occur in elevators and power chains. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation. Compulsory guidance is not permitted.
Features
- Flame-retardant
- Flat cables need less space than round cables
Applications
- Indoor cranes and high-rack facilities
- As supply line for moving machine parts
- For hoisting equipment and conveyor systems
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 8 | |
| Version | Flat cable | |
| Outer diameter | 29 mm | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PVC | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Test voltage | 3 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -15 °C to 70 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
