0023334 | LAPP

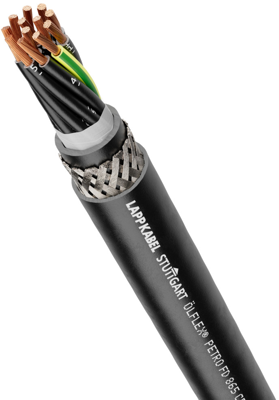

PUR control line ÖLFLEX PETRO FD 865 CP 3 G 1.5 mm², AWG 16, shielded, black, 0023334
Order No.: 33P2178
EAN: 4044776144038
MPN:
0023334
ÖLFLEX PETRO FD 865 CP 3G1,5
Series: ÖLFLEX PETRO FD 865 CP
Unit Price (€ / mtr.)
10.3173 € *
Standard delivery time from the manufacturer is: On Request
Control line, 0023334, LAPP
The 0023334 is a control cable with an outer sheath of PUR for high flexible use and fixed installation under medium mechanical load conditions. The outer sheath withstands high mechanical stresses, in particular abrasion and dragging. This product is suitable for use in dry, damp and wet areas, and outdoor use if the indicated temperature range is observed.
Features
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
Applications
- Onshore and offshore applications
- For use in assembling & pick-and-place machinery
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Protective conductor available | Yes | |
| Core colour sequence | VDE 0293-1 | |
| Temperature range (unmoved) | -60 °C to 80 °C | |
| Rated voltage | 500 V | |
| AWG cross-section | AWG 16 | |
| Temperature range (active) | -50 °C to 80 °C | |
| Material | PUR | |
| Core insulation material | TPE | |
| Shielding | shielded | |
| Product type | control line | |
| Drag chain suitable | Yes | |
| Outer diameter | 8.9 mm | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage U0 | 300 V | |
| Test voltage | 3 kV | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Number of cores | 3 | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
