61821670 | LAPP
PVC marking sleeve, imprint "Q", (L x W x H) 3 x 4.5 x 4.2 mm, max. bundle Ø 4 mm, yellow, 61821670
Order No.: 33P4554
EAN: 4044773399363
MPN:
61821670
MARKIERHÜLSE PC 20/Q
Series: Bezeichnungsringe PC
Unit Price (€ / pc.)
0.0643 € *
Standard delivery time from the manufacturer is: 6 Weeks
Marking ring PC, 61821670, LAPP

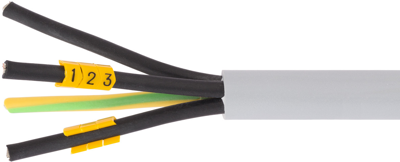

The 61821670 is an open marking ring with pre-printed characters and numbers for marking wires/single cores after assembly, Snap-On mechanism, flame-retardant according to UL 94 V. The shape ensures secure fixation to the cable, while the anti-rotation feature allows for a secure combination marking.
Features
- Flame-retardant
- UV-resistant
- Easy mounting through clipping

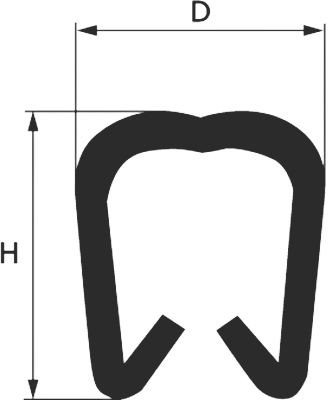

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Bundle diameter | 4 mm | |
| Length | 3 mm | |
| Height | 4.2 mm | |
| Colour | yellow | |
| Material | PVC | |
| Width | 4.5 mm | |
| Markable | No | |
| Imprint | Q | |
| Version | cable maker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | SE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
