53112755 | LAPP

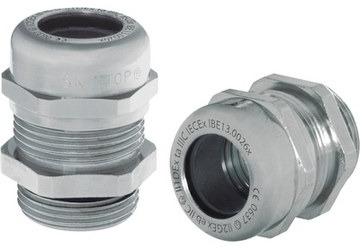

Cable gland, M40, 45 mm, Clamping range 16 to 23 mm, IP68, 53112755

Order No.: 32P2893
EAN: 4044773169881
MPN:
53112755
SKINTOP MSR-M 40x1,5 ATEX
Series: SKINTOP MS-M
LAPP
default L
Image may differ
Print
Key Specification:
Version cable gland
Thread size M40
min. clamping range 16 mm
max. clamping range 23 mm
spanner size 45 mm
Show 24 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
40.9955 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
41.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
40.9955 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Thread size M40
Length 48 mm
Material brass, nickel-plated
max. clamping range 23 mm
max. operating temperature 90 °C
min. clamping range 16 mm
min. operating temperature -30 °C
spanner size 45 mm
Degree of protection (IP) IP68
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
spanner size
Length
Unit:
min. clamping range
Unit:
max. clamping range
Unit:
Thread size
Material
Version
min. operating temperature
max. operating temperature
Degree of protection (IP)
1 item in 24 variations
