53112725 | LAPP

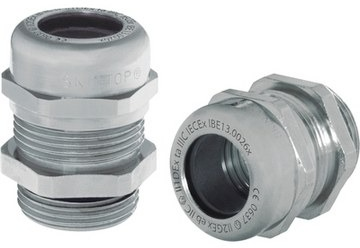

Cable gland, M20, 24 mm, Clamping range 5 to 10 mm, IP68, 53112725

Order No.: 32P2890
EAN: 4044773170160
MPN:
53112725
SKINTOP MSR-M 20x1,5 ATEX
Series: SKINTOP MS-M
LAPP
default L
Image may differ
Print
Key Specification:
Version cable gland
Thread size M20
min. clamping range 5 mm
max. clamping range 10 mm
spanner size 24 mm
Show 24 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
16.898 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
16.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
16.898 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Thread size M20
Length 37 mm
Material brass, nickel-plated
max. clamping range 10 mm
max. operating temperature 90 °C
min. clamping range 5 mm
min. operating temperature -30 °C
spanner size 24 mm
Degree of protection (IP) IP68
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
