53112030 | LAPP

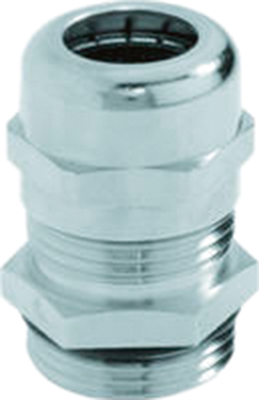

Cable gland, M25, 29 mm, Clamping range 9 to 17 mm, IP68, silver, 53112030
Unit Price (€ / pc.)
11.9476 € *
Available: 48 pcs.
Total Price:
11.95 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9476 €
10 pcs.
10.5315 €
50 pcs.
9.8056 €
150 pcs.
9.3772 €
500 pcs.
8.8893 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric screwed cable glands series SKINTOP MS-M, type Lapp Kabel 5311.
Rugged brass version with tightly retained plastic clamping body for safe and protective cable clamping; Body: nickel-plated brass. Seal: CR/NBR. O-ring: NBR. Locknuts are available on separate order.

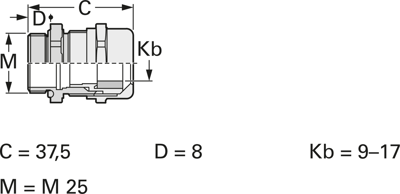

Technical attributes (thread, cable clamping range, width across flats (W) in [mm], dimensions (C/D)): M 25, 9.0 to 17 mm, W 29, C 37.5/D 8.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Thread size | M25 | |
| max. clamping range | 17 mm | |
| Degree of protection (IP) | IP68 | |
| Length | 38.5 mm | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| spanner size | 29 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| min. clamping range | 9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
