53112000 | LAPP
Cable gland, M12, 16 mm, Clamping range 3 to 7 mm, IP68, silver, 53112000
Unit Price (€ / pc.)
5.4502 € *
Available: 355 pcs.
Available in 7 Days: 200 pcs. - if ordered today
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
4.7957 €
100 pcs.
4.2126 €
250 pcs.
4.0341 €
1000 pcs.
3.7723 €
*incl. VAT plus shipping costs
Subject to prior sale

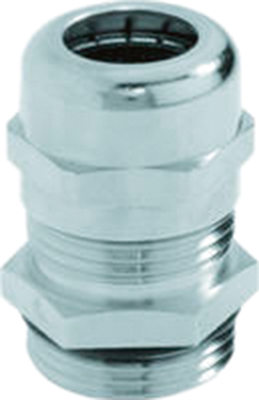

Metric screwed cable glands series SKINTOP MS-M, type Lapp Kabel 5311.
Rugged brass version with tightly retained plastic clamping body for safe and protective cable clamping; Body: nickel-plated brass. Seal: CR/NBR. O-ring: NBR. Locknuts are available on separate order.

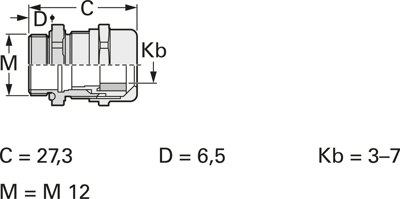

Technical attributes (thread, cable clamping range, width across flats (W) in [mm], dimensions (C/D)): M 12, 3.0 to 7.0 mm, W 16, C 27.3/D 6.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M12 | |
| min. clamping range | 3 mm | |
| max. clamping range | 7 mm | |
| spanner size | 16 mm | |
| Length | 26.5 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
