53112024 | LAPP

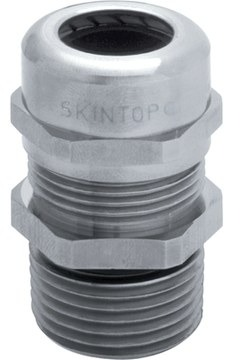

Cable gland, 1/2NPT, 24 mm, Clamping range 7 to 12.5 mm, IP68, silver, 53112024

Order No.: 32P2840
EAN: 4044773173895
MPN:
53112024
SKINTOP MS-NPT 1/2''
Series: SKINTOP MS NPT
LAPP
default L
Image may differ
Print
Key Specification:
Version cable gland
Thread size 1/2NPT
min. clamping range 7 mm
max. clamping range 12.5 mm
spanner size 24 mm
Show 15 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
19.6469 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
19.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
19.6469 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Colour silver
Thread size 1/2NPT
Length 42.5 mm
Material brass, nickel-plated
max. clamping range 12.5 mm
max. operating temperature 100 °C
min. clamping range 7 mm
min. operating temperature -25 °C
spanner size 24 mm
Degree of protection (IP) IP68
Show similar products 0
Logistics
Country of origin IT
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
spanner size
Length
Unit:
min. clamping range
Unit:
max. clamping range
Unit:
Thread size
Material
Version
Colour
min. operating temperature
max. operating temperature
Degree of protection (IP)
1 item in 15 variations
*incl. VAT plus shipping costs
Item description
Total
spanner size
Length
min. clamping range
max. clamping range
Thread size
Material
Version
Colour
min. operating temperature
max. operating temperature
Degree of protection (IP)
Cable gland, 1/2NPT, 24 mm, Clamping range 5 to 10 mm, IP68, silver, 53112026
Manufacturer SKU:
 53112026
50 pcs. 20.2776 €
20.2776 €
0 pcs.
20.28 € *
24 mm
42.5 mm
5 mm
10 mm
1/2NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1 1/4NPT, 45 mm, Clamping range 15 to 23 mm, IP68, silver, 53112056
Manufacturer SKU:
 53112056
10 pcs. 54.7876 €
54.7876 €
0 pcs.
54.79 € *
45 mm
57.5 mm
15 mm
23 mm
1 1/4NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1/2NPT, 24 mm, Clamping range 7 to 12.5 mm, IP68, silver, 53112024
Manufacturer SKU:
 53112024
50 pcs. 19.6469 €
19.6469 €
0 pcs.
19.65 € *
24 mm
42.5 mm
7 mm
12.5 mm
1/2NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 3/4NPT, 29 mm, Clamping range 9 to 16.5 mm, IP68, silver, 53112034
Manufacturer SKU:
 53112034
25 pcs. 22.5386 €
22.5386 €
0 pcs.
22.54 € *
29 mm
44.5 mm
9 mm
16.5 mm
3/4NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1 1/4NPT, 45 mm, Clamping range 19 to 28 mm, IP68, silver, 53112054
Manufacturer SKU:
 53112054
10 pcs. 53.8237 €
53.8237 €
0 pcs.
53.82 € *
45 mm
57.5 mm
19 mm
28 mm
1 1/4NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 3/8NPT, 20 mm, Clamping range 4.5 to 9 mm, IP68, silver, 53112014
Manufacturer SKU:
 53112014
100 pcs. 13.2328 €
13.2328 €
0 pcs.
13.23 € *
20 mm
39.7 mm
4.5 mm
9 mm
3/8NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 3/4NPT, 29 mm, Clamping range 6 to 13 mm, IP68, silver, 53112036
Manufacturer SKU:
 53112036
25 pcs. 22.9432 €
22.9432 €
0 pcs.
22.94 € *
29 mm
44.5 mm
6 mm
13 mm
3/4NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1/4NPT, 16 mm, Clamping range 1 to 5 mm, IP68, silver, 53112006
Manufacturer SKU:
 53112006
100 pcs. 8.9726 €
8.9726 €
0 pcs.
8.97 € *
16 mm
36 mm
1 mm
5 mm
1/4NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1NPT, 36 mm, Clamping range 7 to 15 mm, IP68, silver, 53112046
Manufacturer SKU:
 53112046
25 pcs. 32.8678 €
32.8678 €
0 pcs.
32.87 € *
36 mm
49 mm
7 mm
15 mm
1NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1/4NPT, 16 mm, Clamping range 3.5 to 7 mm, IP68, silver, 53112004
Manufacturer SKU:
 53112004
100 pcs. 8.7822 €
8.7822 €
0 pcs.
8.78 € *
16 mm
36 mm
3.5 mm
7 mm
1/4NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1 1/2NPT, 54 mm, Clamping range 22 to 29 mm, IP68, silver, 53112066
Manufacturer SKU:
 53112066
5 pcs. 67.473 €
67.473 €
0 pcs.
67.47 € *
54 mm
61.5 mm
22 mm
29 mm
1 1/2NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1NPT, 36 mm, Clamping range 11 to 21 mm, IP68, silver, 53112044
Manufacturer SKU:
 53112044
25 pcs. 32.8678 €
32.8678 €
0 pcs.
32.87 € *
36 mm
49 mm
11 mm
21 mm
1NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 2NPT, 67 mm, Clamping range 34 to 45 mm, IP68, silver, 53112074
Manufacturer SKU:
 53112074
5 pcs. 115.5847 €
115.5847 €
0 pcs.
115.58 € *
67 mm
63.5 mm
34 mm
45 mm
2NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 1 1/2NPT, 54 mm, Clamping range 27 to 35 mm, IP68, silver, 53112064
Manufacturer SKU:
 53112064
5 pcs. 65.5928 €
65.5928 €
0 pcs.
65.59 € *
54 mm
61.5 mm
27 mm
35 mm
1 1/2NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
Cable gland, 3/8NPT, 20 mm, Clamping range 2 to 7 mm, IP68, silver, 53112016
Manufacturer SKU:
 53112016
100 pcs. 13.4351 €
13.4351 €
0 pcs.
13.44 € *
20 mm
39.7 mm
2 mm
7 mm
3/8NPT
brass, nickel-plated
cable gland
silver
-25 °C
100 °C
IP68
