53112010 | LAPP

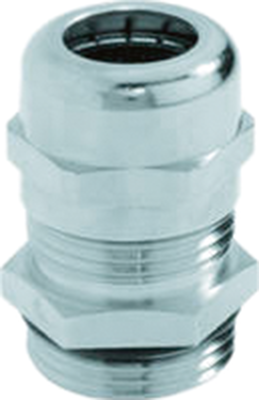

Cable gland, M16, 20 mm, Clamping range 4.5 to 10 mm, IP68, silver, 53112010
Unit Price (€ / pc.)
5.7834 € *
Available: 62 pcs.
Total Price:
5.78 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7834 €
10 pcs.
5.0813 €
100 pcs.
4.4625 €
250 pcs.
4.2959 €
1000 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric screwed cable glands series SKINTOP MS-M, type Lapp Kabel 5311.
Rugged brass version with tightly retained plastic clamping body for safe and protective cable clamping; Body: nickel-plated brass. Seal: CR/NBR. O-ring: NBR. Locknuts are available on separate order.

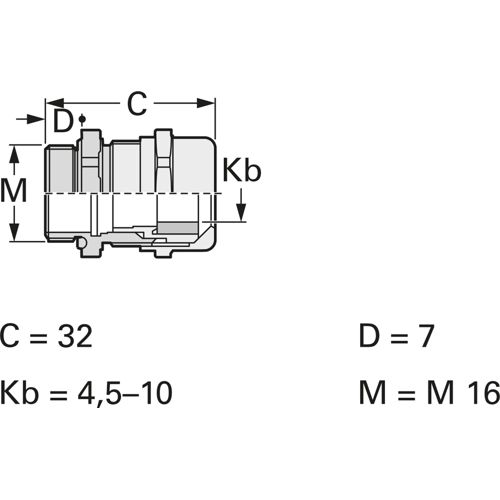

Technical attributes (thread, cable clamping range, width across flats (W) in [mm], dimensions (C/D)): M 16, 4.5 to 10 mm, W 20, C 32/D 7.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M16 | |
| max. operating temperature | 100 °C | |
| max. clamping range | 10 mm | |
| Length | 33 mm | |
| Product type | cable gland | |
| min. clamping range | 4.5 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 20 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
