53111437 | LAPP

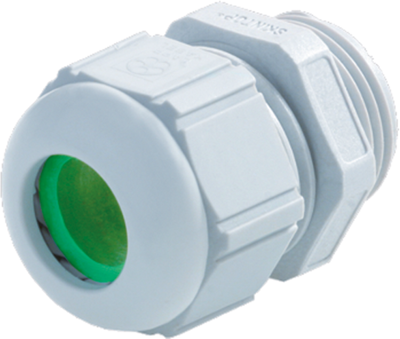

Cable gland, M25, 30 mm, Clamping range 9 to 17 mm, IP68, light gray, 53111437
Order No.: 12H6966
EAN: 4044773175912
MPN:
53111437
SKINTOP ST-HF-M 25X1,5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5942 € *
Available: 14 pcs.
Available in 7 Days: 28,250 pcs. - if ordered today
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5942 €
25 pcs.
2.2134 €
100 pcs.
2.0468 €
250 pcs.
1.9516 €
1000 pcs.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric screwed cable gland, halogen-free series SKINTOP ST-HF-M, type Lapp Kabel 53111437
To EN 50262, flame retardant, reliable and absolutely gentle cable strain relief, fixation of the cable in a single pass.
Material: polyamide, halogen-free
Seal: LSE 1
Color: light gray (RAL 7035)
Temperature range: - 20 to +100 °C
Degree of protection: IP 68

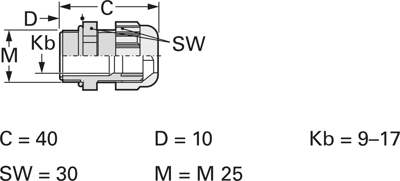

Technical attributes (thread, cable clamping range, width across flats (W), dimensions (C/D)): M 25, 9.0 to 17 mm, W 30, C 40/D 10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M25 | |
| min. clamping range | 9 mm | |
| max. clamping range | 17 mm | |
| spanner size | 30 mm | |
| Length | 40 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| Colour | light gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
