53111417 | LAPP

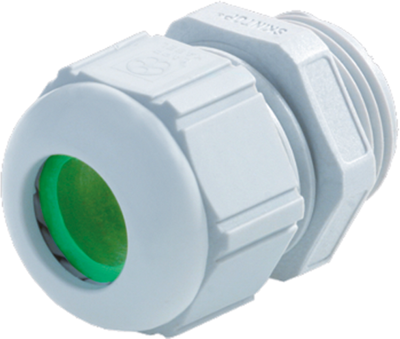

Cable gland, M16, 19 mm, Clamping range 4 to 9 mm, IP68, light gray, 53111417
Order No.: 12H6962
EAN: 4044773176124
MPN:
53111417
SKINTOP ST-HF-M 16X1,5
Unit Price (€ / pc.)
1.7136 € *
Available: 37 pcs.
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
25 pcs.
1.4399 €
100 pcs.
1.3328 €
250 pcs.
1.2614 €
1000 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric screwed cable gland, halogen-free series SKINTOP ST-HF-M, type Lapp Kabel 53111417
To EN 50262, flame retardant, reliable and absolutely gentle cable strain relief, fixation of the cable in a single pass.
Material: polyamide, halogen-free
Seal: LSE 1
Color: light gray (RAL 7035)
Temperature range: - 20 to +100 °C
Degree of protection: IP 68

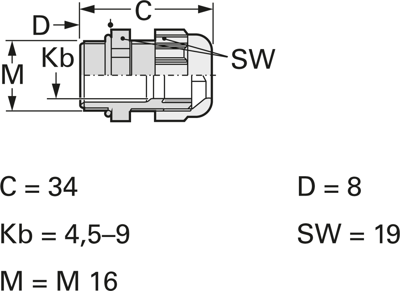

Technical attributes (thread, cable clamping range, width across flats (W), dimensions (C/D)): M 16, 4.5 to 9.0 m, W 19, C 34/D 8.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 9 mm | |
| min. clamping range | 4 mm | |
| Colour | light gray | |
| spanner size | 19 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M16 | |
| Material | PA | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| Product type | cable gland | |
| Length | 34 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
