53111407 | LAPP

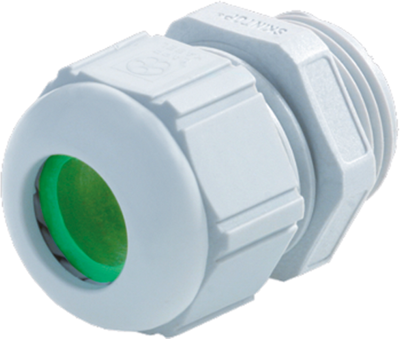

Cable gland, M12, 15 mm, Clamping range 4 to 5 mm, IP68, light gray, 53111407
Order No.: 12H6960
EAN: 4044773176230
MPN:
53111407
SKINTOP ST-HF-M 12X1,5
Unit Price (€ / pc.)
1.6422 € *
Available: 73 pcs.
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
25 pcs.
1.4042 €
100 pcs.
1.2971 €
250 pcs.
1.2495 €
1000 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale
Metric screwed cable gland, halogen-free series SKINTOP ST-HF-M, type Lapp Kabel 5311
To EN 50262, flame retardant, reliable and absolutely gentle cable strain relief, fixation of the cable in a single pass.
Material: polyamide, halogen-free
Seal: LSE 1
Color: light gray (RAL 7035)
Temperature range: - 20 to +100 °C
Degree of protection: IP 68

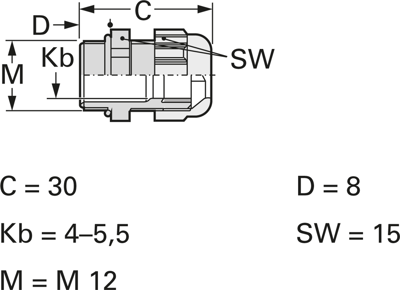

Technical attributes (thread, cable clamping range, width across flats (W), dimensions (C/D)): M 12, 4.0 to 5.5 mm, W 15, C 30/D 8.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 5 mm | |
| min. clamping range | 4 mm | |
| Colour | light gray | |
| spanner size | 15 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M12 | |
| Material | PA | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| Product type | cable gland | |
| Length | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
