52106740 | LAPP

Cable gland, M20, 24/24 mm, Clamping range 8 to 15 mm, IP55, 52106740

Order No.: 32P2004
EAN: 4044773169867
MPN:
52106740
SKINDICHT SHZ-M 20x1,5/16
Series: SKINDICHT SHZ

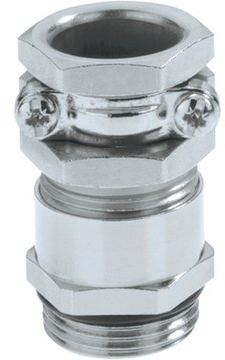

52106740 LAPP Cable Glands Image 1
52106740 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
13.1852 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.19 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1852 €
10 pcs.
11.9357 €
25 pcs.
11.3050 €
50 pcs.
10.6743 €
100 pcs.
10.0436 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Degree of protection (IP) IP55
max. clamping range 15 mm
Length 41.5 mm
Product type cable gland
min. operating temperature -20 °C
Material brass, nickel-plated
spanner size 24/24 mm
max. operating temperature 80 °C
min. clamping range 8 mm
Thread size M20
Logistics
Property Value
Country of origin DE
Customs tariff number 74198090
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
