52105860 | LAPP

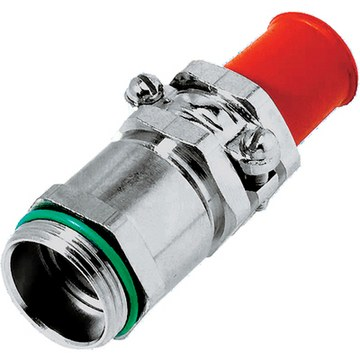

Cable gland, M20, 22/22 mm, Clamping range 10.5 to 13 mm, IP65, 52105860

Order No.: 32P2288
EAN: 4044773172874
MPN:
52105860
SKINDICHT SR-SV-M 20x1,5/13,5/
Series: SKINDICHT SR-SV
LAPP
default L
front L
Image may differ
Print
Key Specification:
Version cable gland
Thread size M20
min. clamping range 10.5 mm
max. clamping range 13 mm
spanner size 22/22 mm
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
45.4342 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
45.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
45.4342 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Thread size M20
Length 65 mm
Material brass, nickel-plated
max. clamping range 13 mm
max. operating temperature 165 °C
min. clamping range 10.5 mm
min. operating temperature -20 °C
spanner size 22/22 mm
Degree of protection (IP) IP65
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
spanner size
Length
Unit:
min. clamping range
Unit:
max. clamping range
Unit:
Thread size
Material
Version
min. operating temperature
max. operating temperature
Degree of protection (IP)
1 item in 10 variations
